We are Manufacturer, Supplier, Exporter of Conveyors Systems. We are repairer and provide AMC(Annual Maintenance Contract) Services, Repairing Services for our products and our setup is situated in Pune, Maharashtra, India.
Conveyors Systems / Hinged Belt Conveyors / Scraper Conveyors / Cheap Conveyors
Reliability And Experience Based On Tradition
GUJAR ENGIFAB INDIA PVT. LTD. Machine Conveyors are particularly used in large machines, and can be manufactured in accordance to the size specifications detailed for diverse equipment / machines. Our enclosures are very effective in protecting machine parts from all kinds of damage. Moreover, these are available at extremely cost-effective prices.

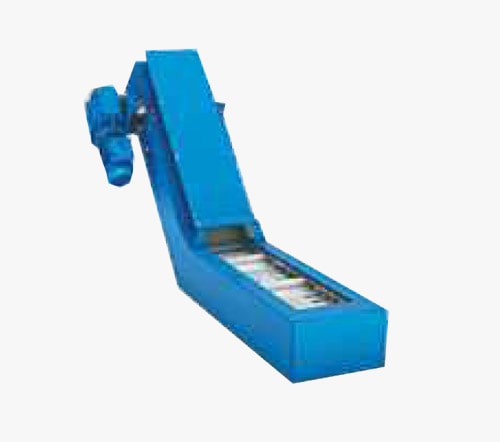

GUJAR ENGIFAB INDIA PVT. LTD. Conveyors Transport of the material takes place via drivers which push the material along the floor of the housing towards the discharge. Cooling lubricants are collected in the conveyor housing and can be fed back into the machine circuit via an added-on container or a pumping unit. Our scraper conveyors can be used as standalone conveyors at machine tools or as linked conveyor systems. Depending on the design, the material to be conveyed is brought to the required height at a defined incline and then discharged.
The Solution For Small And Short Chips
Frequently used for machining of non-ferrous metals
Can also be used for very hard, short chips
Casting chips, milling chips and sawing chips
Stable metal plate construction
Standardized housing cross-section with variable width
Robust worm gear motor with torque switching
Customized discharge height
Customized incline standards = 30°, 45° and 60°
Floor mounting or as a push-in version into the machine base
Motor monitoring systems with current monitoring relay
Other overload safety devices (on request)
Coolant container with pump station
Direct electrical connection to your machine controller
Other special solutions are available. Please do get in touch with us, we will be happy to advise you.

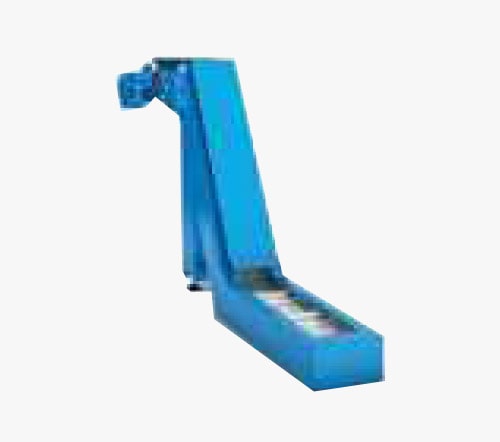

Transportation of the material takes place on the upper trough of a revolving hinged belt. Drivers ensure transport of the material up the inclined section. For wet machining the cooling lubrication are collected in the conveyor housing and can be fed back into the machine circuit via an optionally available coolant container or a pump station.
Our hinged belt / scraper conveyors can be used either as stand-alone conveyors at machine tools, or as linked conveyor systems. Depending on the design, the material to be conveyed is brought to the required height at a defined incline and then discharged.
- Straight / Rising design Max. Incline 45o

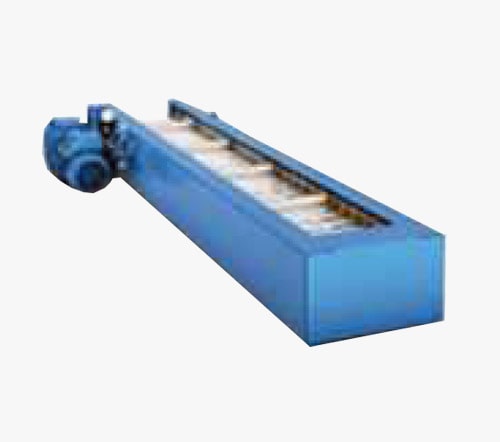

- Can be used in a horizontal or inclined position Max. Incline 45o
- Straight / Rising / Straight design Max. Incline 60o
